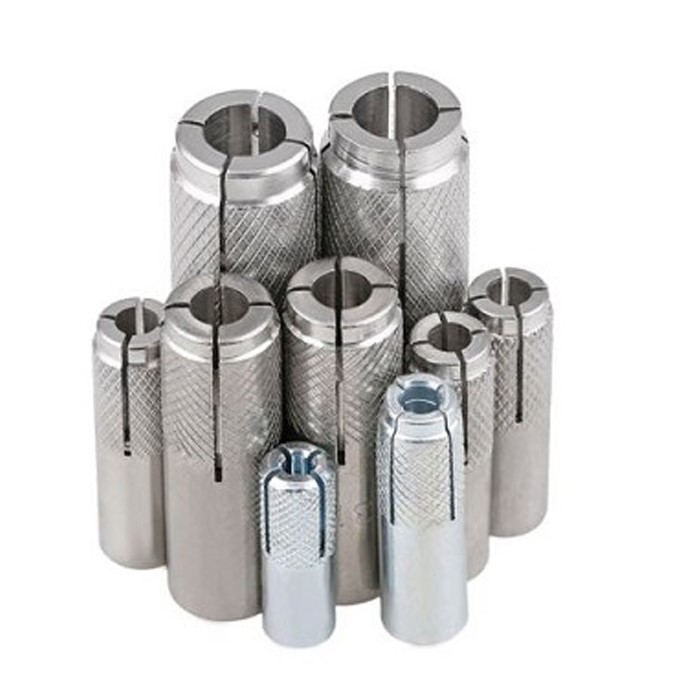

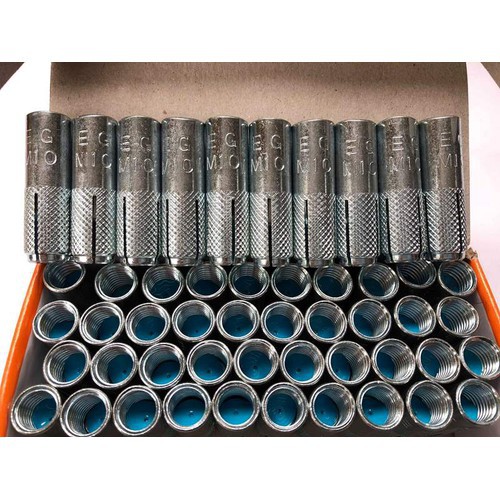

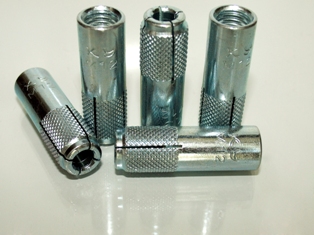

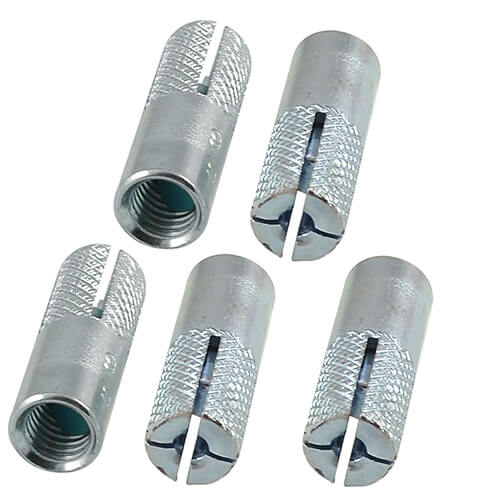

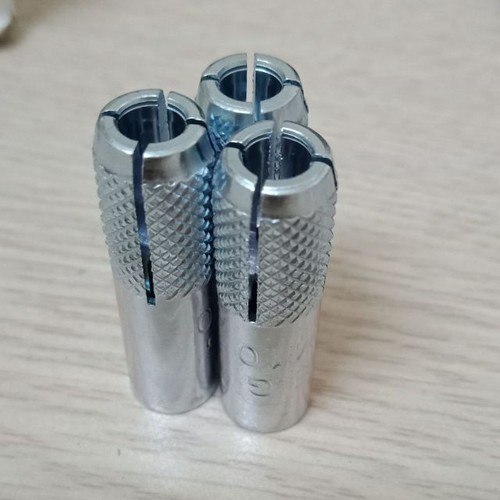

rawlplug bullet

Rawlplug bullet, also known as occlusion. Bullet statistics are now applied in many different fields such as installation of wind pipes, water pipes ... in buildings, supermarkets, apartments ... SJK specializes in providing all kinds of iron bullet switches. , stainless steel bullet stoppers. You need please contact us!

1. Composition of iron bullet stopper

Types of statistics on the market today mostly use C20 steel, because this is the type of steel ....

2. Advantages of using iron bullet stoppers:

- Flat with the substrate surface after installation, not protruding out

- Depth of anchors should drill a shallower hole and less risk of hitting steel

- If you remove the code, the code will not cause problems

- The installation nose will be imprinted on the stem to help identify enough force

- Intuitively check the expansion easily thanks to the installed chisel tip

- Create long-term anchor bolts in concrete, brick walls and solid masonry

- Can be used with all types of hexagon bolts, threaded screws and thread screws

- Tested at Quatest Center - 3

3. Application of iron bullet stopper

Iron ballets are currently used commonly in construction sites such as light poles, road poles, electric poles, or even handrails, front porches, etc.

Because the bullet of the millet is drilled and placed in concrete blocks, so the magazine of the millet requires to withstand traction, recoil, vibration ... from the natural environment.

4. Construction process of installing iron bullet stopper

Step 1: Drill to make a hole of the right diameter to the designated depth of the Snapshot Rule

Step 2: Blow dust from the drill hole with air compressor or dust blower

Step 3: Insert the Statistics to expand the bullet into the drill hole

Step 4: Insert the corresponding installation chisel of the selected rule until the expansion cone is touched. Then use a hammer to hammer the chisel until the "Shoulder" of the chisel touches and imprints on the mouth of Statistics

Step 5: Use the wrench to tighten the torque to the recommended torque for the selected torque drop.

SPECIFICATIONS / TECHNICAL DATA:
- Material / Material: Steel; Stainless steel (Steel, Stainless steel)

- Electroplating, hot dip galvanized (Electrogalvanized, Hot dip galvanized)
